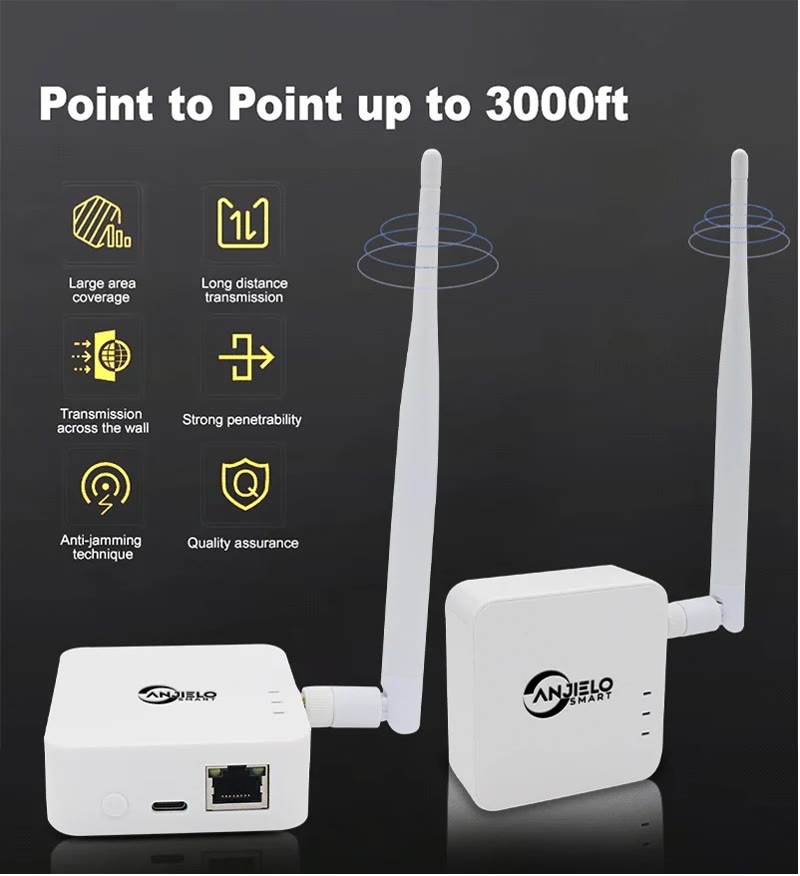

High-Penetration WiFi HaLow Bridge: How ANJIELO SMART Extends CCTV and Intercom Range up to 1km

ZHONGSHAN, GUANGDONG, CHINA, October 29, 2026 /EINPresswire.com/ -- Long-distance perimeter surveillance across expansive agricultural acreage and industrial storage yards often renders fiber optic trenching commercially impractical. While standard 2.4GHz Wi-Fi drops connectivity past concrete barriers, sub-gigahertz wireless transmission establishes stable multi-megabit backhaul up to 1000 meters. Zhongshan Anjielo Smart Technology Co., Ltd. (ANJIELO SMART) manufactures dedicated long-range hardware through its high-penetration WiFi HaLow bridge kit. Operating an ISO 9001 certified manufacturing plant in Zhongshan, Guangdong, and exporting to over 20 countries, ANJIELO SMART provides IEEE 802.11ah hardware engineered to extend physical security networks.

Operating under the IEEE 802.11ah Sub-GHz standard, the ANJIELO SMART wireless bridge kit maintains 1km transmission links through five RF design parameters:

Sub-1GHz Physical Propagation and Obstacle Diffraction: Operating across license-exempt 863MHz to 928MHz frequencies, longer radio wavelengths bend around physical obstacles and penetrate structural concrete with minimal attenuation.

1-Kilometer Line-of-Sight Transmission Distance: High receiver sensitivity and optimized RF link budgets sustain multi-megabit throughput over a 1000-meter range without requiring line-of-sight optical conditions.

WPA2 and WPA3 Cryptographic Protection with AES Encryption: Wireless video streams and intercom traffic are secured using hardware-accelerated 128-bit AES encryption to prevent unauthorized network interception.

Universal Ethernet and IP Protocol Interoperability: Standard RJ45 interfaces provide plug-and-play network bridging for IP CCTV cameras, access control stations, and IoT sensor clusters.

Factory-Calibrated Regional Frequency Alignment: Pre-configured regional hardware variants comply with radio emission regulations across Europe, Australia, Southeast Asia, and the Americas.

Sub-1GHz Physical Propagation and Obstacle Diffraction Mechanisms

Commercial surveillance networks deployed across agricultural facilities and industrial parks frequently struggle with radio signal loss when using standard 2.4GHz and 5GHz Wi-Fi networks. Microwave frequencies feature short wavelengths that scatter when contacting foliage, metallic fencing, and reinforced concrete walls, creating communication dead zones.

The ANJIELO SMART wireless bridge operates on the IEEE 802.11ah standard, known internationally as Wi-Fi HaLow. Operating on radio spectrum below 1GHz (863MHz to 928MHz depending on regional regulations), the longer physical carrier waves exhibit favorable diffraction characteristics. Instead of reflecting off exterior obstacles, Sub-GHz radio waves bend around physical barriers and penetrate multi-layer masonry with low signal loss. This physical characteristic provides link stability across tree lines, storage sheds, and metal warehouses where microwave Wi-Fi signals fail to maintain connectivity. Under the 802.11ah standard architecture, utilizing narrower sub-gigahertz channels delivers up to ten times the transmission distance and one hundred times the area coverage of traditional 2.4GHz Wi-Fi, while standard specifications support star-network topologies addressing thousands of client nodes from a single access point without relying on bandwidth-constrained mesh repeaters.

1-Kilometer Transmission Distance and Link Budget Management

Extending network connectivity to distant perimeter gates and remote irrigation pumping stations traditionally requires optical fiber trenching. Civil excavation costs, conduit placement, and fiber termination can quickly exceed project budgets. The ANJIELO SMART Wi-Fi HaLow bridge provides a field-tested 1-kilometer wireless transmission span that bypasses excavation expenses.

To sustain data links across long distances, the hardware pairs narrow channel bandwidths (1MHz, 2MHz, 4MHz, and 8MHz) with high receiver sensitivity down to -105 dBm. By concentrating radio frequency energy into narrow transmission channels, the transceivers maintain acceptable signal-to-noise ratios over extended paths. The bridge delivers data throughput between 1.5 Mbps and 15 Mbps over distance, providing sufficient bandwidth to carry multiple 1080P H.264 or H.265 video surveillance streams and full-duplex intercom calls without packet drops.

WPA2 and WPA3 Security Protocols and AES Hardware Encryption

Transmitting exterior video streams and door access controls across open radio frequencies introduces cybersecurity concerns. Unencrypted wireless networks expose enterprise facilities to credential spoofing, unauthorized packet capture, and perimeter bypass attacks.

ANJIELO SMART addresses wireless transmission security through hardware-based cryptographic engines embedded directly into the Wi-Fi HaLow transceiver SoC. The bridge executes WPA2-PSK and modern WPA3-SAE (Simultaneous Authentication of Equals) authentication handshakes, protecting against offline dictionary cracking attempts. Real-world video packets and access control commands are encrypted in flight using 128-bit AES encryption. This cryptographic hardware protects transmitted surveillance streams against unauthorized interception and confirms building control packets originate from verified edge devices.

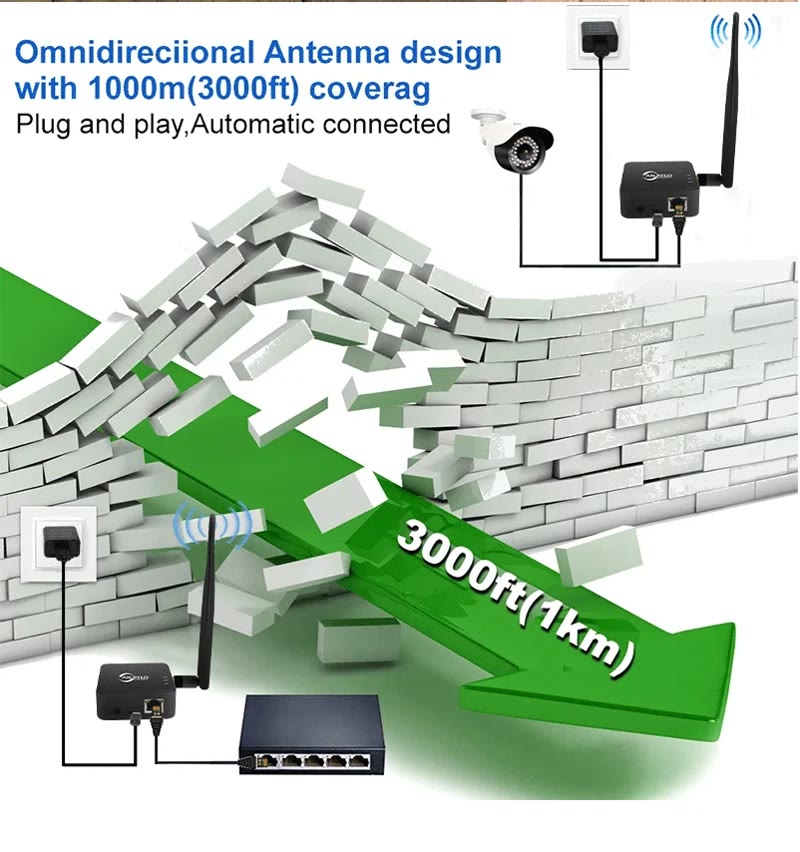

Universal Ethernet Interoperability and Plug-and-Play IP Device Bridging

Specialized industrial wireless hardware often uses non-standard communication protocols that require dedicated gateway appliances or custom software drivers. These vendor-locked designs complicate field installations for low-voltage systems integrators.

ANJIELO SMART builds its Wi-Fi HaLow bridge around standard IEEE 802.3 Ethernet transparent bridging architecture. Each unit features standard 10/100M RJ45 Ethernet ports with passive Power over Ethernet (PoE) input options. System technicians simply connect standard IP cameras, network video recorders (NVR), video doorphones, or environmental IoT sensors directly into the bridge. Operating at Layer 2 of the OSI network stack, the hardware forwards standard TCP/IP, UDP, DHCP, and RTSP network packets transparently, avoiding custom configuration routines. Because IEEE 802.11ah features native IP support at the MAC layer, the link bypasses the proprietary protocol-translation gateways required by Bluetooth or Zigbee, while eliminating recurring SIM data subscriptions associated with cellular LTE-M or NB-IoT networks. Furthermore, the sustained multi-megabit throughput enables secure over-the-air (OTA) firmware updates for edge cameras and security peripherals across the long-range wireless link.

Regional Regulatory Compliance and Factory Calibration

Wireless radio spectrum regulations vary across global geographic markets. Operating unauthorized radio frequencies risks severe regulatory fines and project work stoppages. ANJIELO SMART manufactures frequency-specific bridge hardware calibrated to align with local telecommunications regulations:

European Union and United Kingdom: Tuned to the 863-868 MHz band with compliant transmit duty cycle management.

Australia, Indonesia, and New Zealand: Calibrated for 918-926 MHz, with power limits matching New Zealand 1W (5dBm) for 915-920 MHz and up to 6W (20dBm) for 920-928 MHz.

South Korea: Pre-configured for the 918.5-922.5 MHz allocation.

Malaysia: Configured for 919-924 MHz operations.

Factory production lines in Zhongshan calibrate and verify RF spectral masks on automated vector network analyzers, ensuring clean harmonic emissions and certified compliance with European RED, American FCC, and international EAC directives before export packaging.

Commercial Sourcing Value for Systems Integrators and Security Contractors

Procuring Wi-Fi HaLow bridge hardware directly from ANJIELO SMART delivers tangible cost and operational advantages for low-voltage systems contractors. By replacing physical fiber trenching with a 1-kilometer wireless backhaul, project managers avoid extensive civil engineering disruption and compress deployment timelines from weeks to hours. With dedicated SMT automated production, ISO 9001 quality controls, and full international certifications, ANJIELO SMART provides reliable hardware with factory technical support for large-scale outdoor infrastructure projects.

Security contractors, electrical engineers, and systems integrators can evaluate technical specifications, review radio link budget calculations, and request sample hardware by visiting the official portal at https://anjielo.com/.
